General Purpose Enclosed Control Transformers

Delta control transformers are purpose-built for motor control, industrial panels, and automation applications, they feature unique solutions such as an integrated grounding point and welded top plate for added customization. They deliver stable, isolated power to control circuits, protecting sensitive equipment and ensuring reliable performance, even in the most demanding environments.

The General Purpose Enclosed Delta Control Transformer comes in a durable metal enclosure for quick installation. Perfect for light-duty industrial and commercial environments, it provides isolated, stable power to protect sensitive equipment.

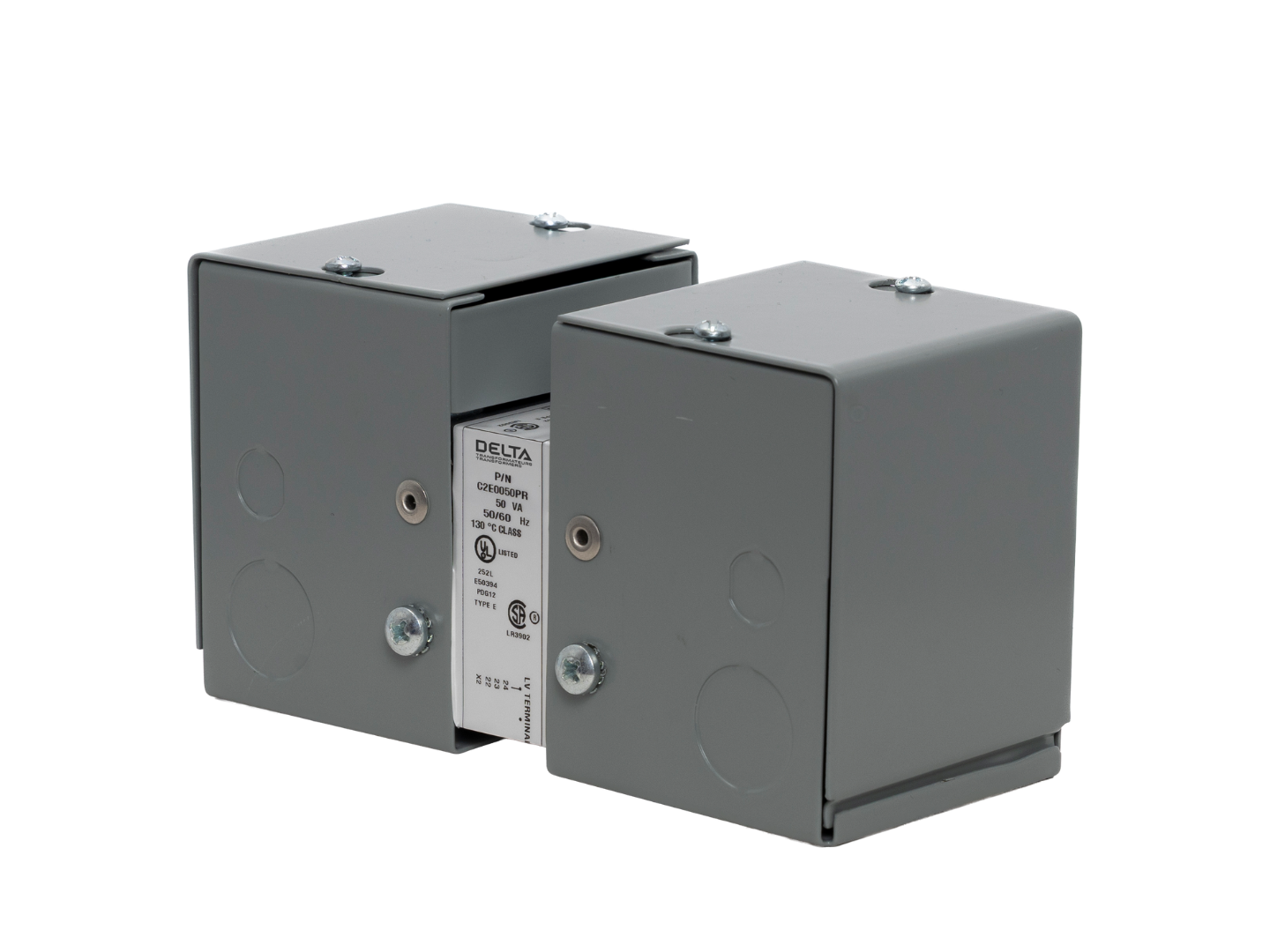

New Encolosed Control Transformer

Applications:

Application HVAC

HVAC Panels

Controllers

Controllers

Power Timers

Power Timers

Solenoids

Solenoids

Battery Storage

Battery
Storage

  • VA: 50-5000
  • Frequency: 50/60Hz (60Hz only on QC and UH voltage codes)
  • Phase: 1
  • Material: Copper
  • Insulation System: 130°C insulation class 50-1500VA; 180°C insulation class >= 2000VA
  • Enclosure Type: Type 1
  • Impregnation Process: The impregnation process for the core and coil assembly include a period under vacuum, followed by pressure impregnation using epoxy resin
  • Enclosure Finish: Grey finish ANSI-61
  • Fusing Accessories: FSFH1 (fuse holder kit)
  • Knock-outs: 8 total; 4 KO - 0.88”Ø ; 4 KO - 0.50”Ø
  • Certification: UL Listed, CSA certified
  • Warranty: 15 year warranty with standard limited liability clause
Delta Atria Installation Instructions
Delta Atria Wiring Instructions
Delta Atria Fuse Holder Kit Instructions
